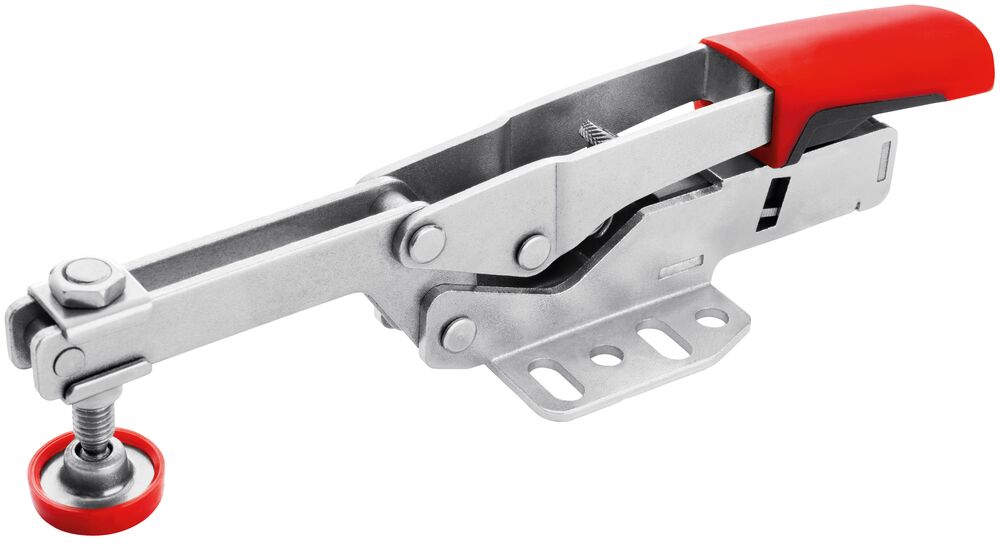

Horizontal toggle clamp with open arm and horizontal base plate STC‑HH

Original price was: ₹4,444.00.Current price is: ₹3,111.00.

In the clamped position, the lever is horizontal, and the clamping height adjusts automatically and infinitely up to 35 mm, maintaining consistent clamping force without manual screw adjustments. Clamping force is variable up to 2,500 N, with sturdy tempered metal sheets for durability. The base plate’s hole pattern ensures quick setup for both metric and imperial systems. The handle is made of high-quality, oil-resistant two-component plastic.

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist

Low Prices

Price match guarantee

100% Guarantee.

Always the correct part

Easy Returns.

Quick & Hassle Free

Additional information

In the clamped position, the lever is horizontal
Automatic and infinitely variable adjustment of the clamping height up to 35 mm while clamping force remains unchanged – without having to make manual changes to the position of the pressure screws
Clamping force is variable up to 2,500 N depending on the adjustment of the set screw in the cantilevered joint
Sturdy, tempered metal sheets for a long service life
Hole pattern on the base plate designed to facilitate fast and secure clamping set-up for metric and imperial
High-quality oil resistant two-component plastic handle
