Series 20-AV

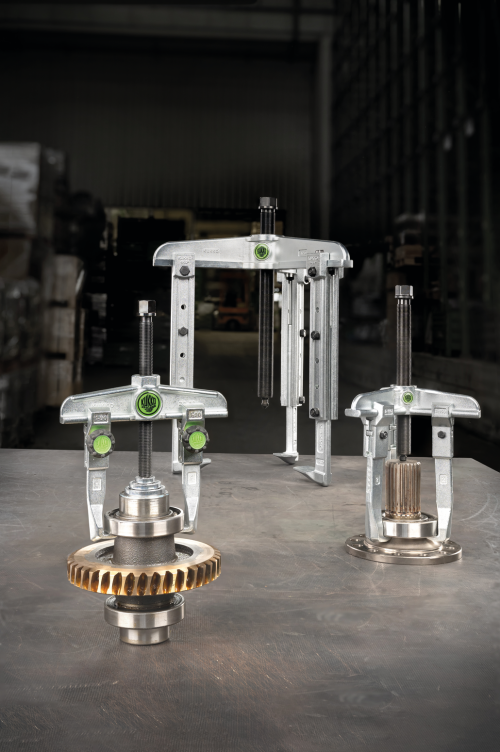

The Series 20-AV 2-Jaw Universal Puller with adjustable reach is a powerful and versatile tool designed for safely and efficiently pulling bearings, gears, and discs in a wide range of sizes. As the largest puller in the 20 series, the 20-5 model is recognized as the most powerful puller in its class. This puller is capable of loosening any component that is mounted on a shaft and is freely accessible from the outside. It features an adjustable spread and reach, which allows it to adapt to a variety of pulling situations. The flexibility of this puller ensures safe, non-destructive disassembly, whether performing external extraction or internal extraction tasks.

Area of Application
This puller is specifically designed for the removal of bearings, gears, and discs in common sizes across industries, workshops, and crafts. It is particularly useful for handling eccentric components due to the freely movable jaws that glide smoothly along the crossbar. The tool can be easily adjusted to handle different sizes, ensuring both efficiency and safety during operation.

Key Features

• Adjustable Spread and Reach: The puller has a variable adjustment range, offering a span of 0 mm to 750 mm and a reach depth between 500 mm and 750 mm. This makes it highly adaptable to various extraction tasks, regardless of the component size.
• Rotatable Spindle Tip (Switch Technology): The spindle is securely attached with a rotatable tip that allows for smooth operation on both smooth surfaces and when centering the components, ensuring greater stability during use.
• Convertible Design: The puller can be converted from an external puller to an internal extractor by simply reversing the jaws, providing greater flexibility for different extraction needs.
• Anti-Slip Safety: The puller features anti-slip safety at the spindle neck, ensuring secure operation with a wrench and reducing the risk of slippage during use.
• Thread Protection: The spindle run-out design ensures protection for the thread, enhancing durability and preventing damage to the spindle.

Overall, the Series 20-AV 2-Jaw Universal Puller is an advanced, adaptable tool ideal for both crafts and industrial applications, offering easy, safe, and efficient extraction of various components while ensuring durability and secure handling.
