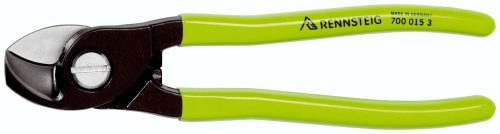

Cable shears D15

Original price was: ₹7,640.00.Current price is: ₹6,622.00.

Cable cutter with a special cutting geometry for smooth and clean trimming of cables
Also meets aerospace specification AS6173/3
For tin-, nickel- and silver-coated copper cables according to specification AS22759, to be used also on aluminum cables
Not for steel wire, wire cable or hard-drawn copper cable
Ergonomic one-hand operation
No crushing or deformation of cables

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist

Low Prices

Price match guarantee

100% Guarantee.

Always the correct part

Easy Returns.

Quick & Hassle Free

Additional information

Art. No.: 700 015 3
EAN: 4049002007668
Weight: 229 g
Dimension: 170 mm
Finish: Black-oxide finish
Handles: Plastic-coated grips
Cable Diameter: Up to 15 mm
Single Conductor Cable (Solid): Cu 16 mm² / Al 35 mm²
Multi-Conductor Cable: Cu 50 mm² / Al 50 mm²

Features:

Special cutting geometry for smooth and precise trimming of cables.
Complies with aerospace specification AS6173/3.
Suitable for tin-, nickel-, and silver-coated copper cables per AS22759, as well as aluminum cables.
Not suitable for steel wire, wire rope, or hard-drawn copper cable.
Ergonomic one-hand operation for user convenience.
Prevents crushing or deformation of cables during cutting.
