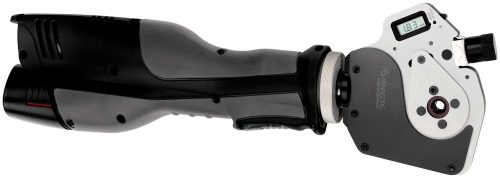

Battery-powered HC 20.2 hydraulic powered crimper
| Art. No. | 6702 0100 1 |
|---|---|
| EAN | 4049002149467 |
| Weight | 4,200 g |
| Dimension | 500 x 420 x 125 mm |
- Powered hydraulic hand tool for crimping turned pin and socket contacts
- Crimping force 19 kN
- Crimp cycle 2.8 seconds
- Approx. 300 crimps achievable on one battery charge (with average load)
- Charging time <30 min for lithium-ion battery
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Additional information
- Powered hydraulic hand tool for crimping turned pin and socket contacts
- Crimping force 19 kN
- Crimp cycle 2.8 seconds
- Approx. 300 crimps achievable on one battery charge (with average load)
- Charging time <30 min for lithium-ion battery
- 4/8 indent crimping units usable, rotates by 360°
- Crimp pin closing can be adjusted in steps of 0.01 mm and can be viewed digitally (mm, inches or selector positions)
- Integrated wear monitoring
- Recalibration function
- Checking of default setting with enclosed test gauge
| Art. No. | 6702 0100 1 |
|---|---|
| EAN | 4049002149467 |
| Weight | 4,200 g |
| Dimension | 500 x 420 x 125 mm |
